Starting from version 2.0.2 Agisoft Metashape Professional and Agisoft Viewer support custom basemaps, that can be used both in Model and Ortho view modes. The article describes the steps about how to add the custom basemap into your project.


Please note: only XYZ tile services in Web Mercator and Geodetic projection are currently supported.



How to add custom basemap:

1.  Click Customize button in the Basemap drop-down list from the Toolbar in the Ortho or Model view mode:

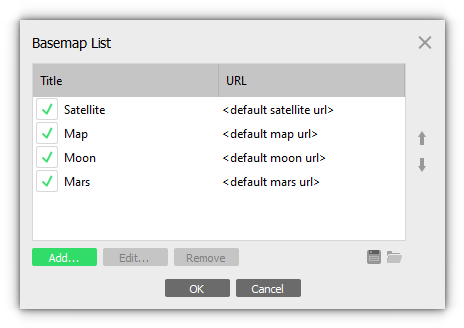

2. Click Add... button in the Basemap List dialog window:


A list of connected maps will be displayed in the Basemap List dialog box.
    Title - indicates the name that will be displayed in the drop-down list in the interface;
    URL - the basemap URL that has been entered.

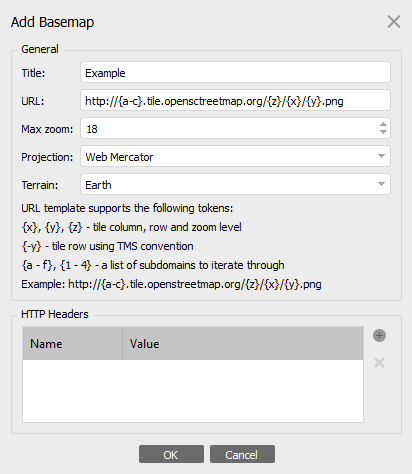

3. Specify Title and URL for the custom basemap in the Add Basemap dialog window:


Parameters:

  • URL template supports the following tokens:
    {x}, {y}, {z} - tile column, row and zoom level;
    {a-f}, {1-4} - a list of subdomains to iterate through
  • Max zoom - the parameter that sets the detalization of the basemap display. I.e. it is possible to adjust the number of approximation levels.
  • HTTP Headers - allows you to set headers if the service providing tiles requires it.

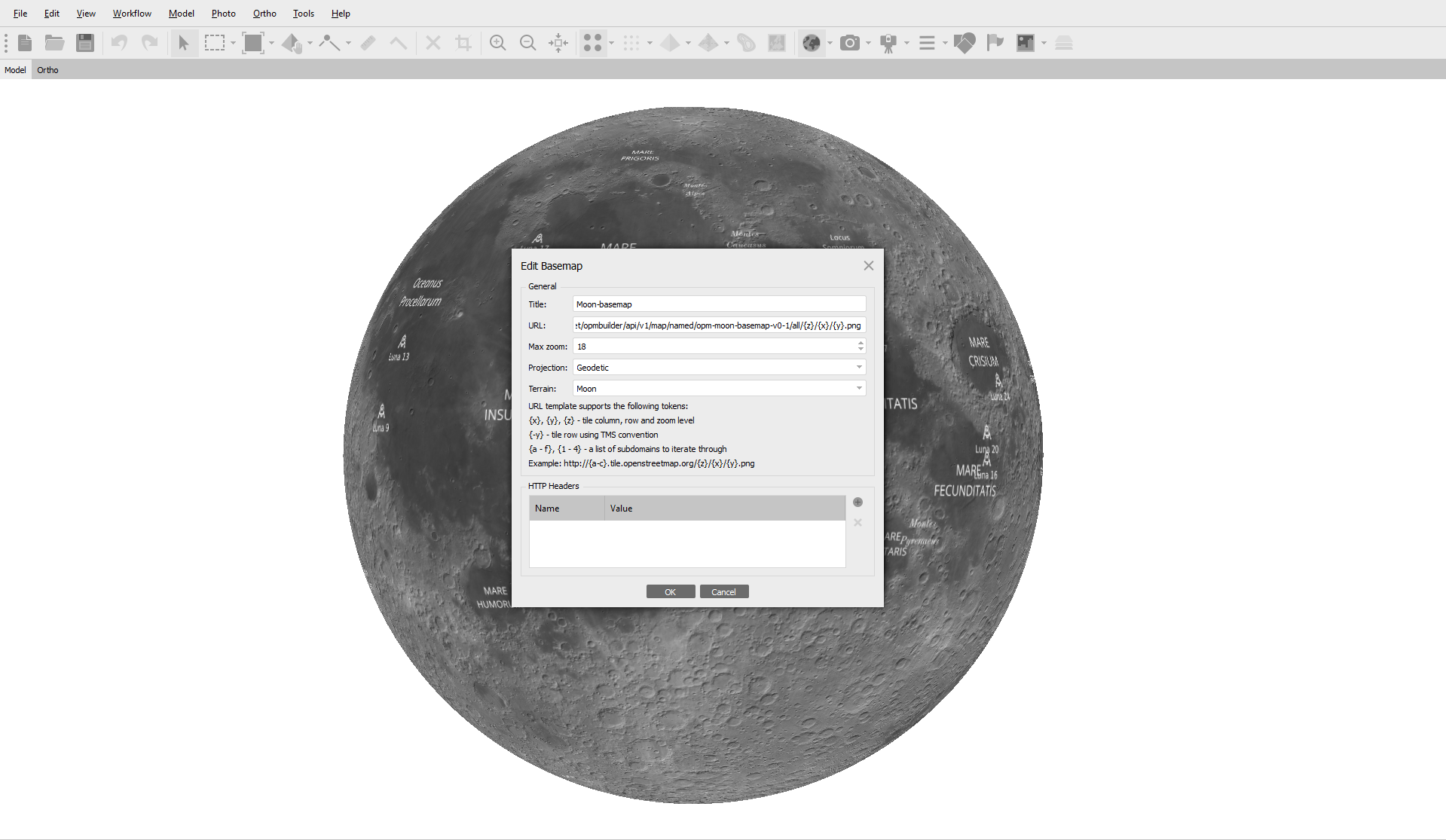

Starting from Metashape 2.2, it is possible to use basemap for non-earth (for other planets or the Moon) projects:


  • Projection - allows to set projection for your basemap (Web Mercator or Geodetic).
  • Terrain - it is possible to change terrain. The following surfaces are available: Earth, Moon and Mars.

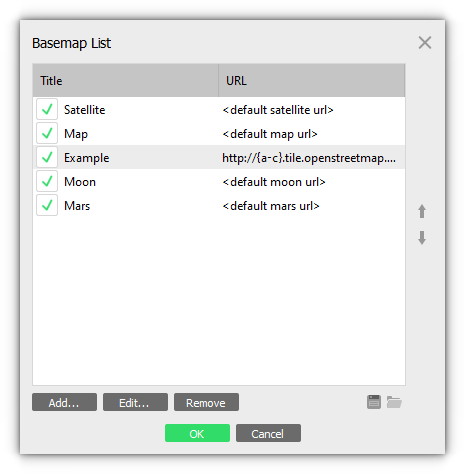

4. Click OK button. The added basemap will be displayed in the basemap list:


You can also Edit and Remove basemap using corresponding buttons in the Basemap List dialog window.

Unchecked basemaps will not be displayed in the Basemap drop-down list and therefore wouldn't be available for selection.

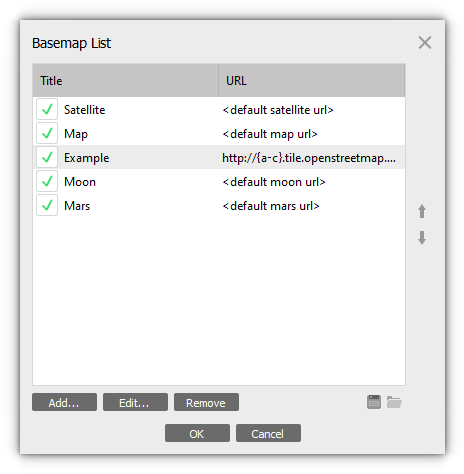

5. Click OK button:


6. Select the added basemap layer from the list to be displayed in the Ortho or Model view mode:

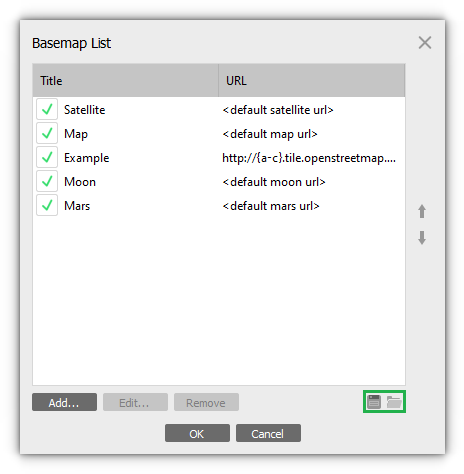

You can save the basemap list in the Agisoft Basemap List (*.xml) format, and import it into the project using the corresponding buttons in the Basemap List dialog window (bottom right corner of the dialog window):


The custom basemaps can be also added in Agisoft Viewer. Use the workflow described above to add custom basemaps to the Agisoft Viewer.
